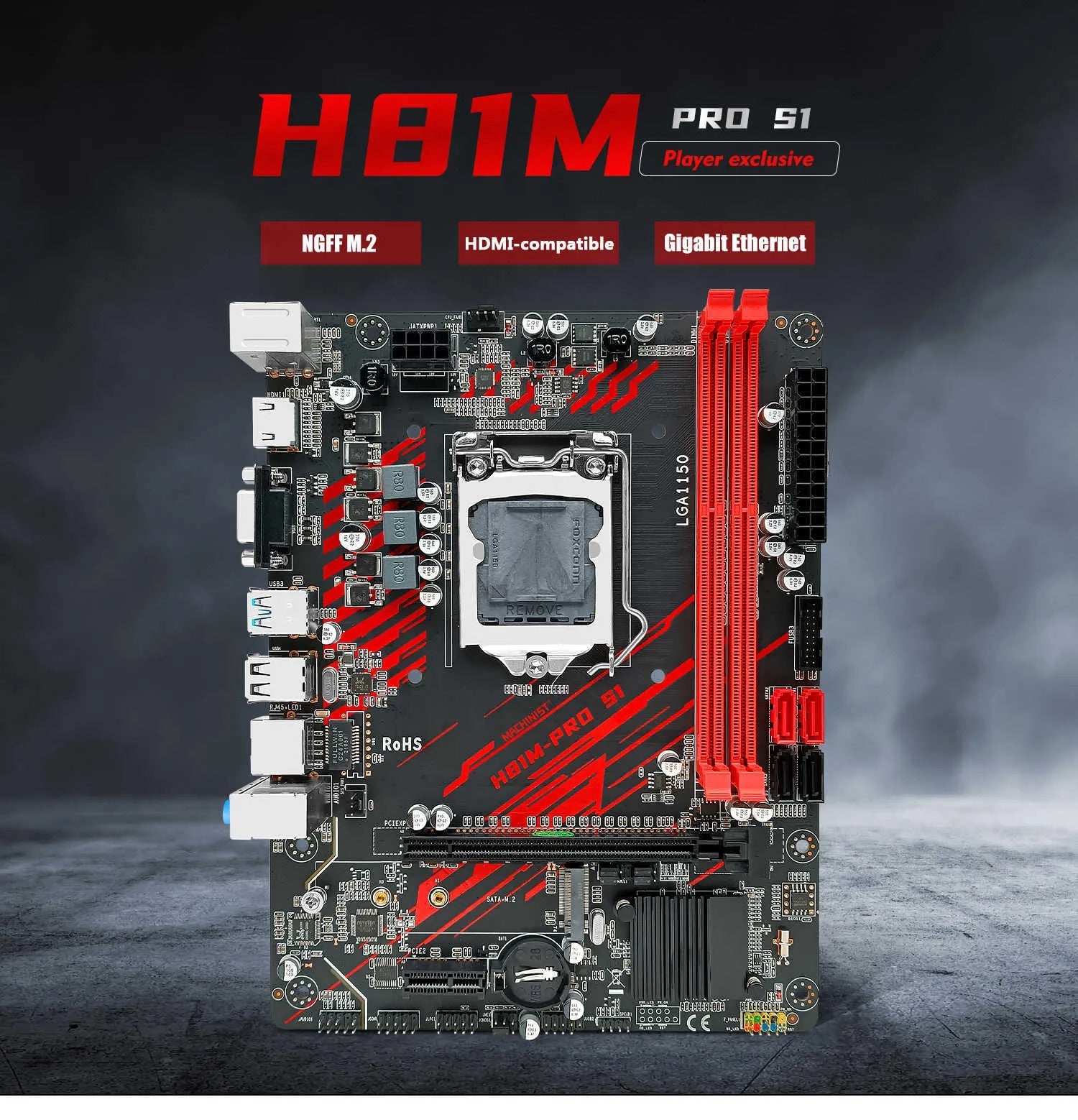

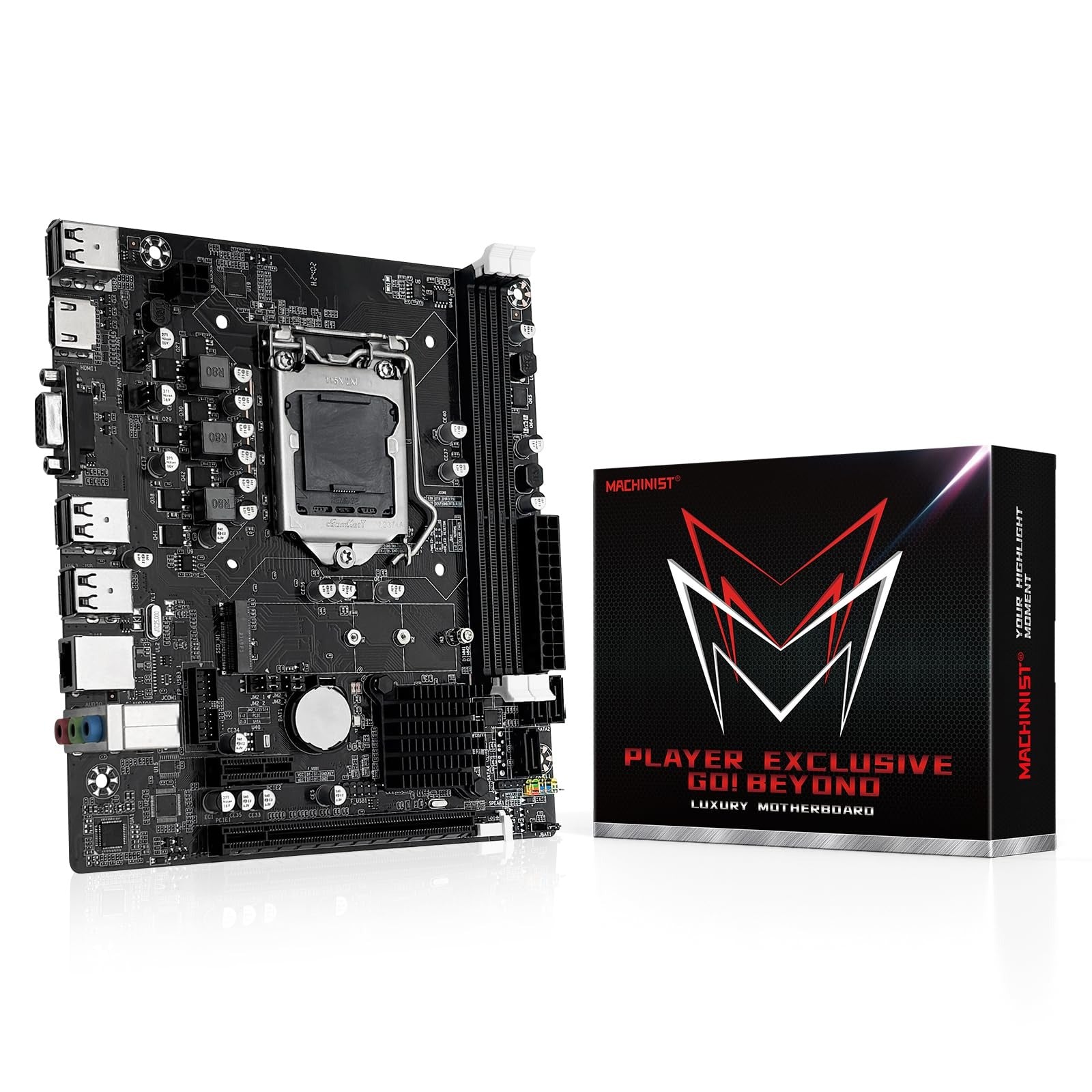

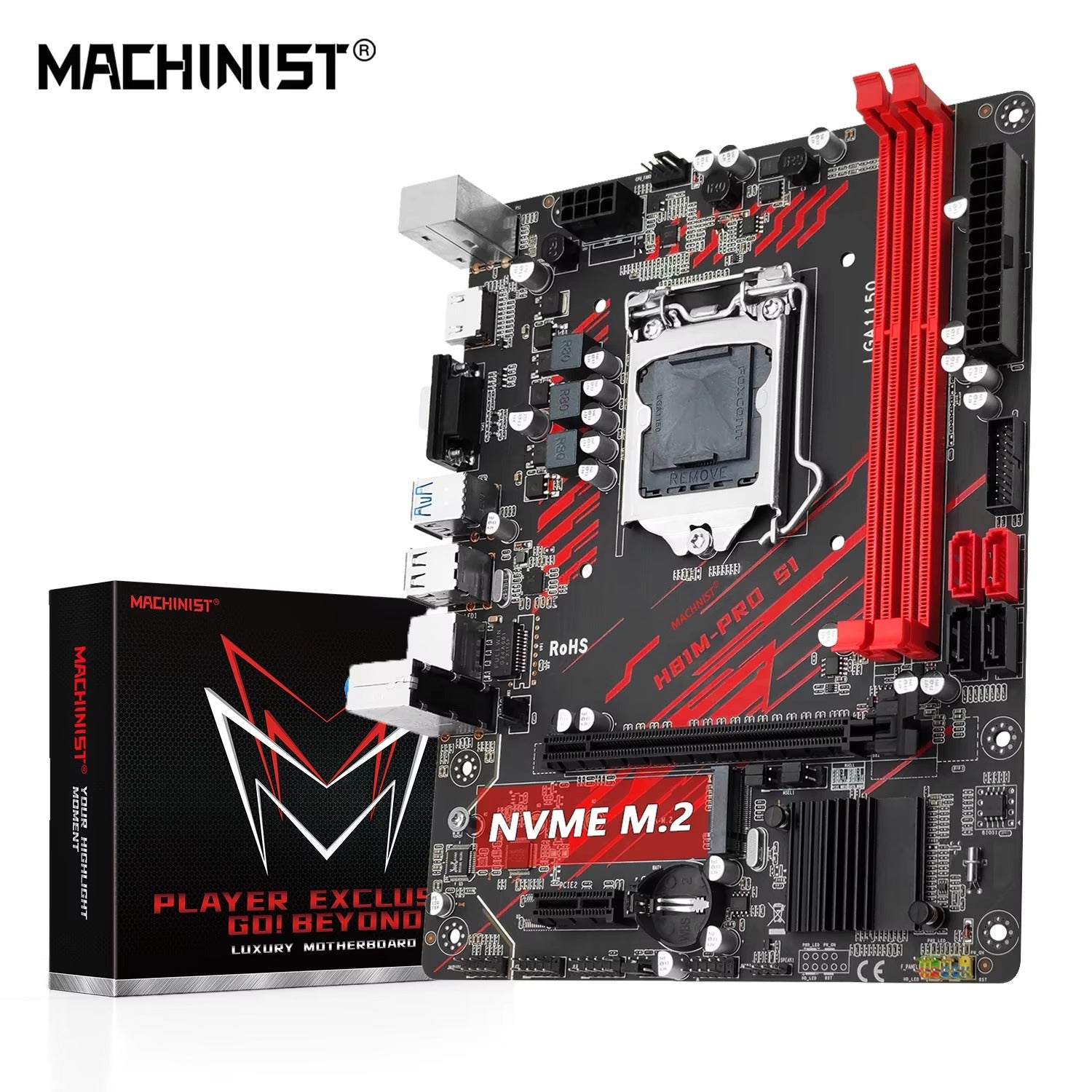

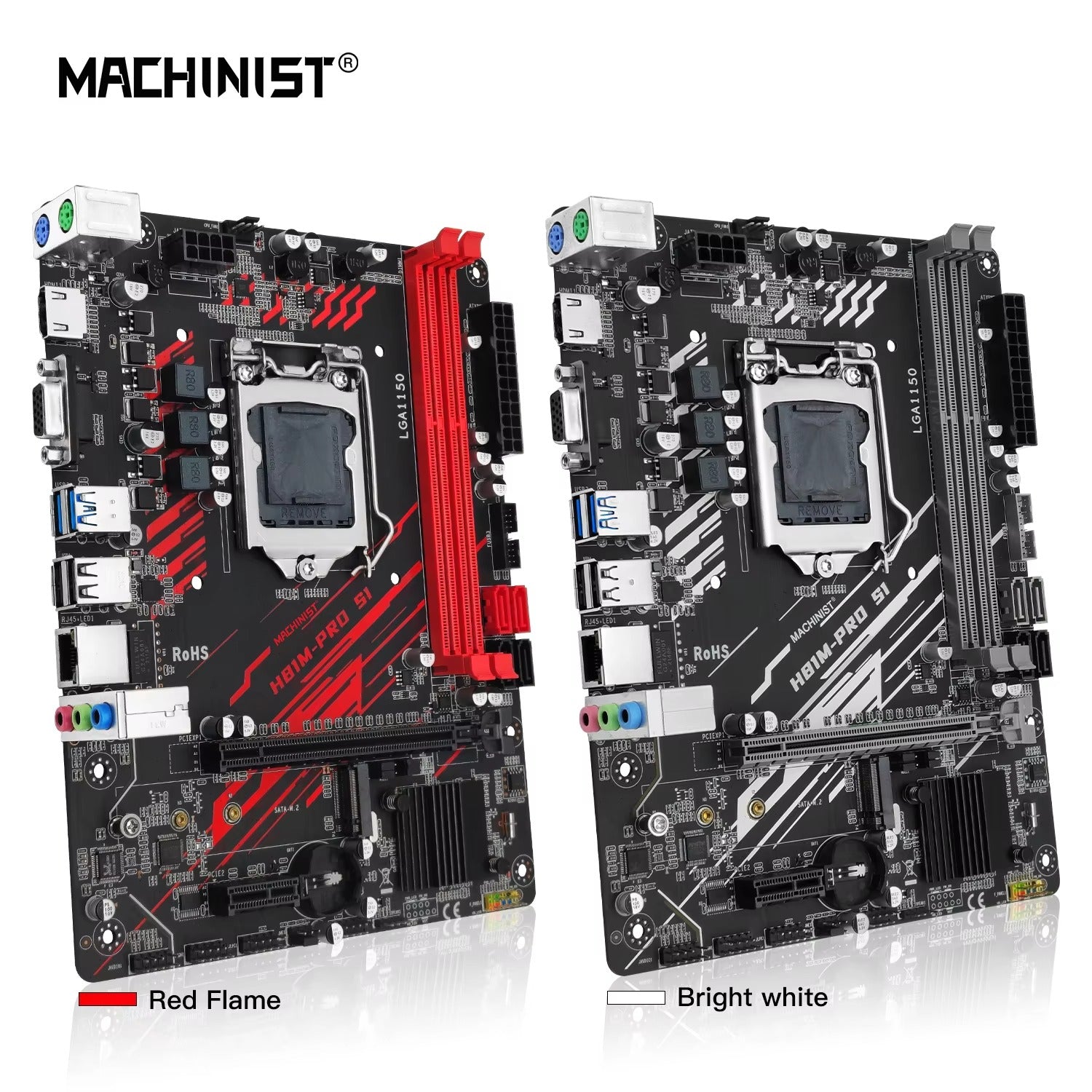

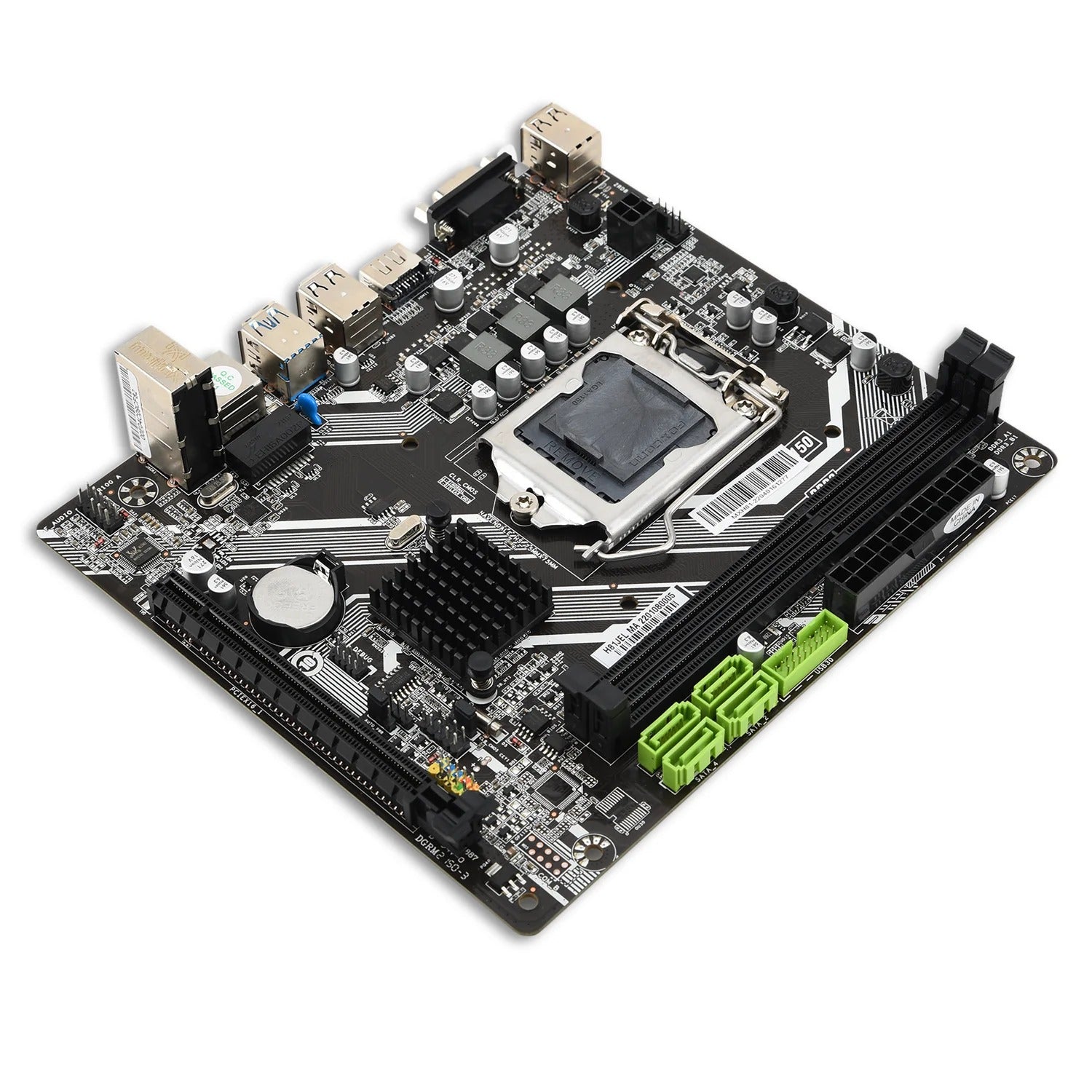

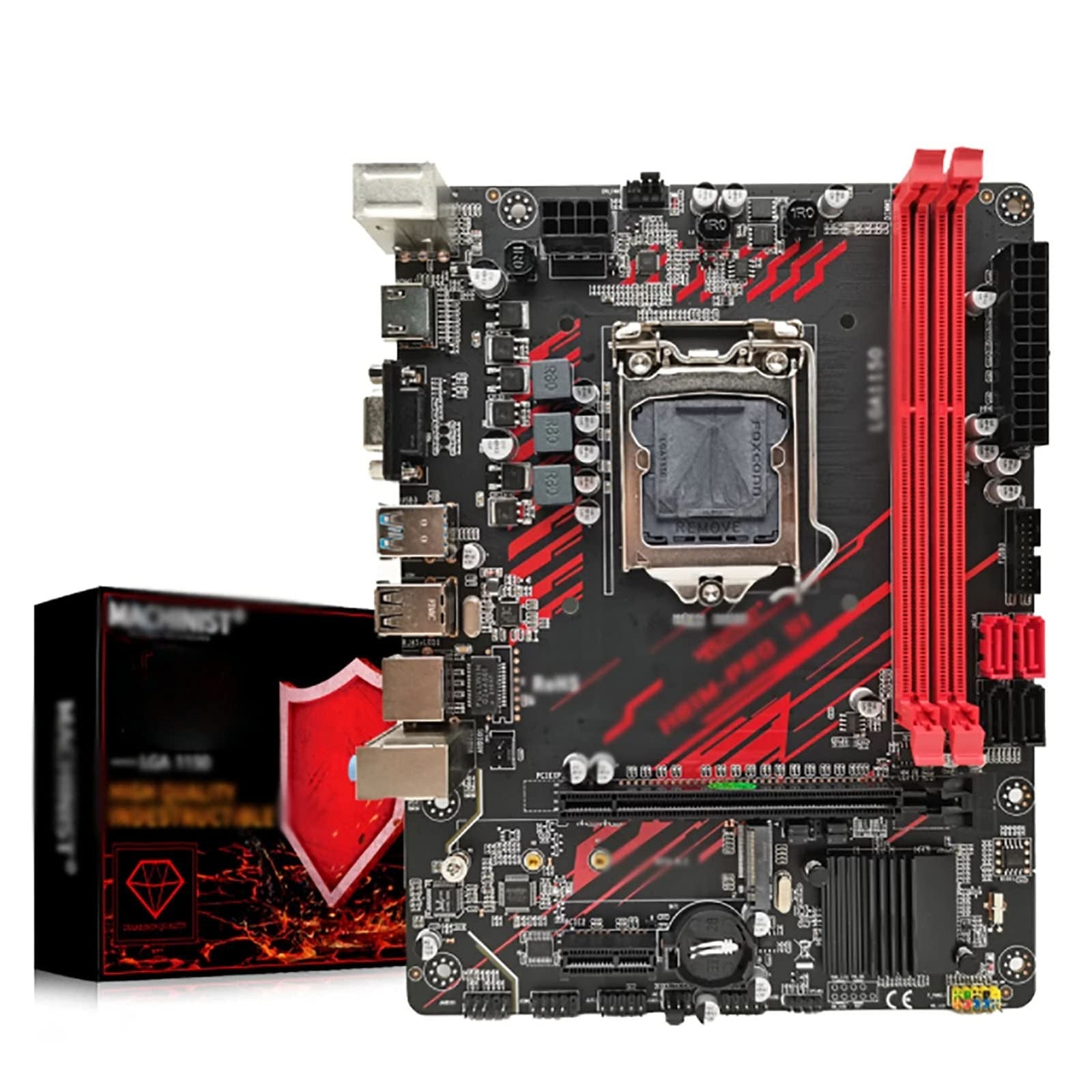

MACHINIST H81 LGA 1150 Micro-ATX Gaming Motherboard (Dual-Channel DDR3, USB 3.0, HDMI/VGA, New China Import)

Build or upgrade a budget gaming PC with the MACHINIST H81 LGA 1150 Micro-ATX Motherboard. Brand new in box, this motherboard supports Intel 4th Generation Core i7, i5, i3, Pentium, and Xeon E3 V3 series processors on the LGA 1150 socket. It features dual-channel DDR3 memory slots supporting up to 16GB, a PCIe x16 graphics card slot, SATA ports, and USB 3.0 connectivity. Built with high-density solid capacitors and multi-phase power delivery, it ensures long-term system stability for budget gaming setups, office desktop builds, and daily workstation needs. We have more variety in this, so please contact us on WhatsApp: 03312572111.

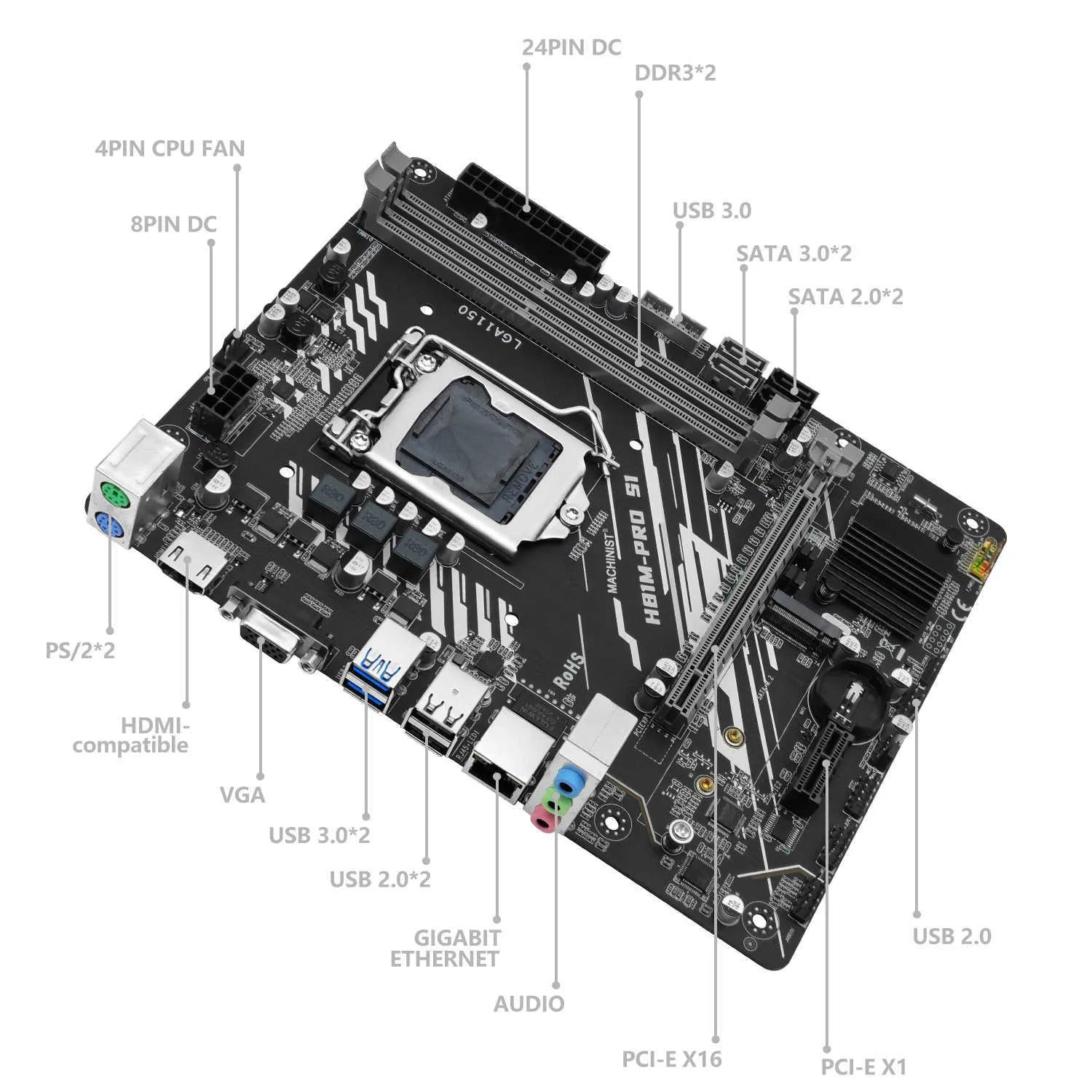

Compatibility

Compatible with standard 4th generation desktop hardware and power supplies:

• Processor Support: Intel LGA 1150 Socket (4th Gen Core i7, i5, i3, Pentium Gold, Celeron, and Xeon E3-1200 V3 series CPUs)

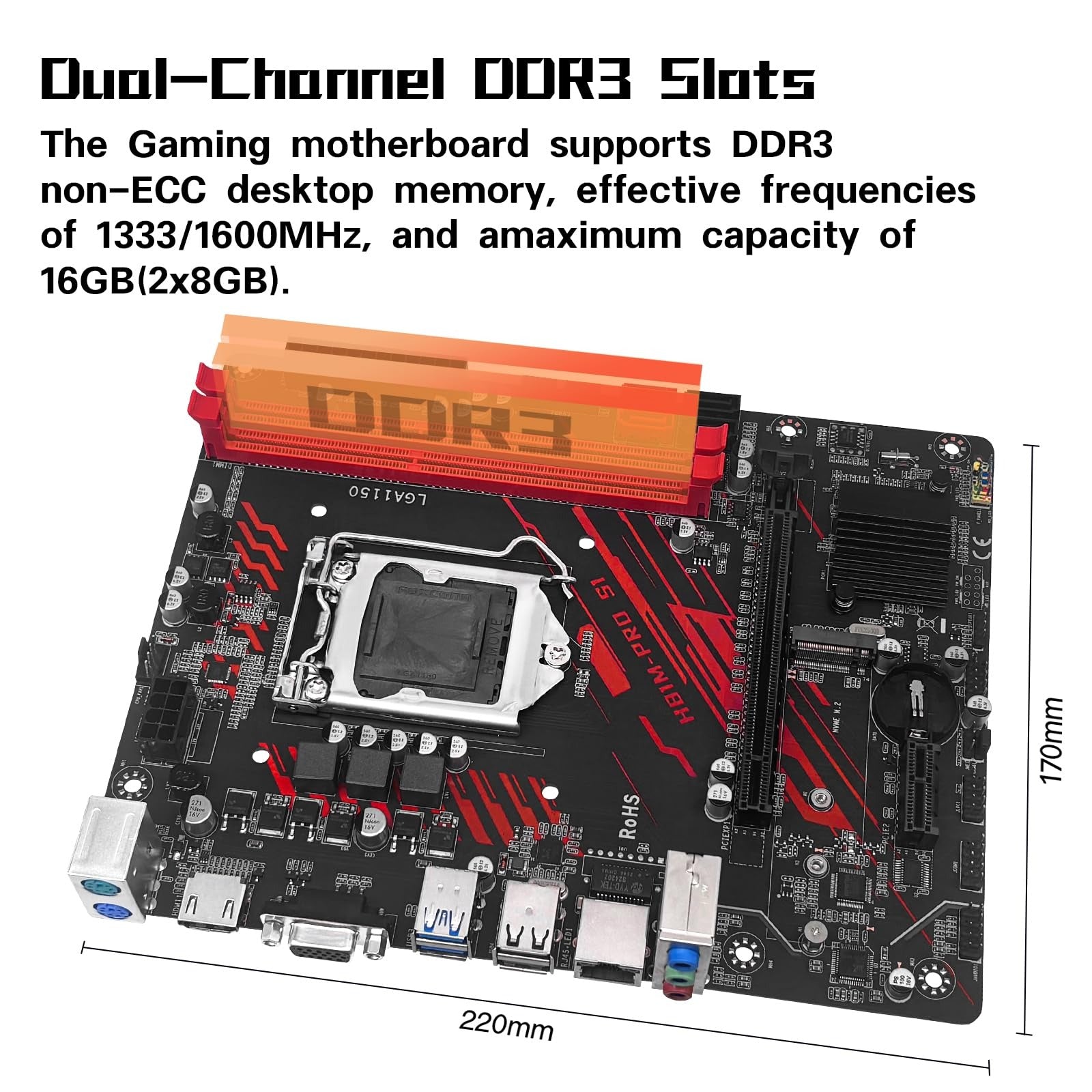

• Memory Support: Dual-Channel DDR3 / DDR3L 1066 / 1333 / 1600 MHz Non-ECC Unbuffered RAM (Up to 16GB max capacity)

• Storage Options: High-speed SATA 3.0 (6Gbps) + SATA 2.0 ports for 2.5-inch SSDs and 3.5-inch HDDs

• Expansion Slots: 1 × PCI Express x16 slot (for dedicated graphics cards) + 1 × PCI Express x1 slot

• Display Outputs: 1 × HDMI port + 1 × VGA port (supports dual display setups via integrated CPU graphics)

• Form Factor & Power: Micro-ATX (mATX) standard layout | 24-Pin ATX Main Power + 4-Pin / 8-Pin CPU Power connectors

Key Features

• 100% solid capacitor design provides improved voltage stability and extended motherboard lifespan

• Onboard PCIe x16 slot supports modern NVIDIA GeForce GTX/RTX and AMD Radeon graphics cards

• High-definition 6-channel audio codec paired with Fast Ethernet LAN for lag-free online connectivity

• Rear USB 3.0 and USB 2.0 ports alongside front-panel USB header for high-speed external transfers

• Compact Micro-ATX dimensions fit comfortably into standard ATX and mini-tower desktop cases
